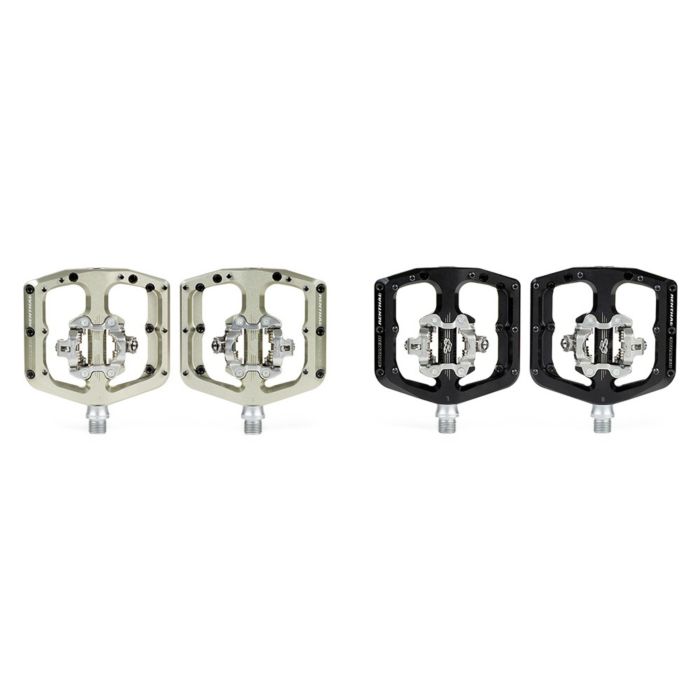

Renthal Revo-DHC Clip Pedals

The Renthal Revo-DHC Clip Pedals are downhill race pedals that combine flat pedal control with the security and efficiency of a clip system. Built around an extra-large 104 x 111mm forged and CNC machined 6061 aluminium body, they deliver high levels of support, feedback and stability under load. The proprietary Renthal binding with easy-entry geometry and wide tension adjustment ensures secure engagement with reduced entry force. Designed for hard racing, the Revo-DHC also features a patent-pending serviceable axle system and triple bearing layout for long-term durability.

Key Features and Benefits:

• Extra-large 104 x 111mm forged and CNC machined 6061 aluminium body: The wide platform increases contact area between shoe and pedal, improving lateral stability and load distribution across the foot. This creates flat pedal-style support with clip-in security, giving greater control in rough terrain and at race pace.
• Fully adjustable pin height from 1.5mm to 5.5mm in 1mm increments: Tuneable pins allow precise setup to match different shoe soles and tread depths. This ensures consistent shoe interface and grip, resulting in improved foot stability and reduced unwanted movement.
• Proprietary Renthal binding with easy-entry geometry: The rear jaw moves down and away from the cleat during engagement, reducing the force required to clip in at a given spring tension. This enables fast, reliable entry without compromising retention strength.
• Wide spring tension adjustment range: The binding offers a broad tension window to suit different rider weights, styles and race demands. This allows accurate fine tuning of release force, delivering predictable engagement and exit control.
• Triple outboard cartridge bearings with full-length axle support: Two smaller bearings and a larger outer bearing are positioned at the pedal edge for improved load support. This layout reduces play and protects internals from rock strikes, extending service life.
• Inboard Igus bush with full-contact wiper seal: The extra-wide bush spreads load evenly across the axle while the wiper seal blocks dirt and moisture. This maintains smooth rotation and reduces wear in harsh conditions.
• O-ring sealed end cap and sealed bearing system: Multiple sealing points prevent water and debris ingress into the bearing assembly. This preserves smooth operation and reduces maintenance intervals.
• Patent-pending easy service axle system using standard tools: The axle design allows removal and reinstallation of bushings and bearings with common workshop tools. This enables home servicing, lowers running costs and keeps pedals performing to race standard.

Control at speed depends on a stable shoe interface and consistent retention. The Revo-DHC platform supports the foot like a flat pedal while locking it in place through a secure SPD-compatible system. Adjustable pins, wide tension range and a broad body combine to reduce unwanted foot movement under heavy loads. The reinforced axle and bearing layout protect the internals from impacts, helping maintain smooth rotation and consistent engagement over time.

For riders who demand race-level control and serviceable durability, the Revo-DHC offers a clear technical advantage. Set them up to match your shoes and tension preference, and run a pedal built to handle repeated hard use on demanding tracks.

Specifications:

• Revolutionary extra-wide 104 x 111mm 6061 body, with CNC machined finish.
• Adjustable pin height for shoe compatibility - 1.5mm to 5.5mm, in 1mm increments.
• Proprietary Renthal binding, with easy-entry geometry.
• Super wide range of tension adjustment, for all preferences and uses.
• Triple cartridge bearings, mounted outboard for ground-strike durability.
• Inboard Igus bush, with Patent Pending Renthal easy service axle system.
• O-ring sealed end cap and full contact wiper seal, inboard.
• 55mm crank to binding distance (same as the Revo-TRC).
• SPD cleat compatible (supplied with Renthal cleat).
• With standard pin configuration, 622g per pair.
