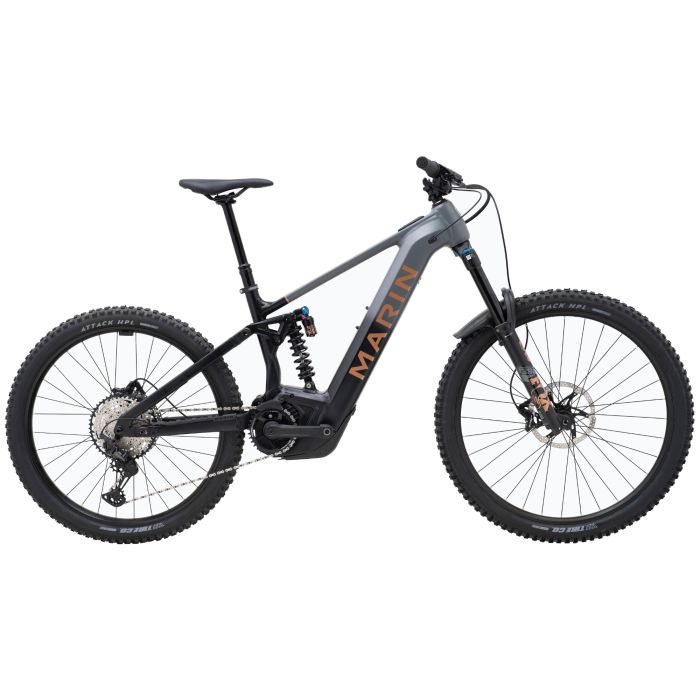

Marin Alpine Trail E2 Bosch Full Suspension e-Bike - 2026
- Bosch's Performance Line CX 750Wh
- Shimano XT 12-speed drivetrain
- Fox 38 Performance Elite & DHX2 Performance Elite
The Marin Alpine Trail E2 Bosch Full Suspension e-Bike - 2026 powers through demanding terrain with Bosch’s strongest motor and Marin’s longest-range battery. Engineered with an upgraded Series 4 aluminium frame, advanced MultiTrac suspension, and fully adjustable geometry, this e-bike provides confident handling on steep trails. With 170mm front and 160mm rear travel, paired with Fox Performance Elite suspension and Shimano XT components, it delivers reliable performance on every ride.
Key Features and Benefits:
- Bosch Performance Line CX Motor with 85Nm Torque: Powerful and responsive pedal assistance, delivering smooth power on steep climbs. Ensures fatigue-free riding, increasing your range and allowing you to tackle tougher trails without hesitation.
- Large-Capacity Bosch 750Wh PowerTube Battery: Provides the greatest battery range in the Marin line-up, securely integrated in the frame. Allows extended ride times and ensures you complete long, demanding adventures without battery concerns.
- Series 4 Aluminium MultiTrac 2 LT Frame: Enhanced stiffness and durability with optimized pivot points, delivering controlled and efficient suspension action. Improves handling precision on technical descents, boosting confidence and rider control.
- Adjustable Geometry via Headset and Flip Chips: Allows riders to fine-tune head angle by ±0.75° and adjust chainstay length or bottom bracket height. Enables precise handling customisation, resulting in improved stability or agility to match trail conditions.
- Mixed-Wheel Setup with Tubeless-Compatible Rims: Combines a 29" front and 27.5" rear wheel to blend rollover capability with agility, enhancing manoeuvrability and grip. Provides optimal traction and confidence on varied trail surfaces and tight corners.
- Premium Fox Suspension with 170mm Front and 160mm Rear Travel: Fox 38 Performance Elite fork and Fox Float DHX2 shock absorb harsh impacts, delivering smooth, predictable handling. Ensures a composed ride even through the roughest sections of trail.
This e-bike is built to confidently tackle steep climbs and demanding descents. Riders benefit from the combination of Bosch's most powerful drive system, Marin's longest-lasting battery, and finely tuned suspension technology. Features like geometry adjustments, premium suspension, and a sturdy frame deliver consistent performance, enabling riders to comfortably take on longer, tougher trails.
The Marin Alpine Trail E2 Bosch provides everything needed to conquer challenging terrain with ease. Experience smoother climbs, controlled descents, and extended adventures—it's the capable choice for serious riders.
Size - Rider height range
- M - 5'6" to 5'10"
- L - 5'10" to 6'2"
- XL - 6'2" to 6'4"
| Frame | All New, Series 4 Alloy, 160mm MultiTrac Suspension LT, Adjustable Headset & CS Length/Height, Integrated Battery/Charging Port, 148mm Rear Thru-Axle |
| Front Suspension | Fox 38 Performance Elite, 170mm Travel, 29" , 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender |
| Rear Suspension | Fox Float DHX2, Performance Elite, Low Speed Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 30mmxM8 Lower Mount, M Spring Rate = 450lb, L Spring Rate = 500lb, XL Spring Rate = 550lb |
| Rim | Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible |
| Hub Rear | Shimano HB-TC500, 148x12mm, Centerlock, Standard Freehub Body |
| Hub Front | Shimano FH-TC500, 110x15mm, Centerlock, 32H |
| Spokes | 14g Black Stainless Steel |
| Tyres | Vee Tire Co Attack HPL, E-Control Compound, Front 29x2.5", Rear 27.5x2.5" |
| Derailleur Rear | Shimano XT 12-Speed, SGS |
| Shift Lever | Shimano SLX 12-Speed, I-Spec EV |
| Crankset | e*thirteen e*spec Plus Cranks, 160mm Length |
| Motor | Bosch Performance Line CX, 85Nm |
| Chain | KMC E12S, E-Bike Specific Chain |
| Cassette | Shimano SLX M7100 Cassette, 12-Speed, 10-51T |
| Brakes Front | TRP DH-R EVO 4-Piston Hydraulic Disc, 203mm, 2.3mm Thick |
| Brakes Rear | TRP DH-R EVO 4-Piston Hydraulic Disc, 203mm, 2.3mm Thick |
| Brake Levers | TRP DH-R EVO Hydraulic |
| Handlebar | Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back |
| Stem | Marin CNC, 35mm Length, 35mm Bar Bore |
| Grips | Marin Grizzly Lock On |
| Headset | FSA Custom Headset, Adjustable HTA Design |
| Seatpost | TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm |
| Saddle | Marin Speed Concept |
| Battery | Bosch PowerTube 750 Wh |
| Display | Bosch BRC3100 Systems Controller |
| Switch | Bosch BRC3300 Bluetooth Remote 22.2mm Clamp |
| Extras | e*thirteen e*Spec Chainguide |
| Extras | Cush Core Pro Tire Inserts, Marin Tire Sealant 300ml Bottle, Bosch EB12.110.016; 2A Charger |
| Range, Charging Time | 31-78 miles (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 11 Hours (estimated, under ideal conditions) |
| Size | L, M, XL |
| Brand | Marin Bikes |
| MPN(s) | 737517001, 737517002, 737517003 |
