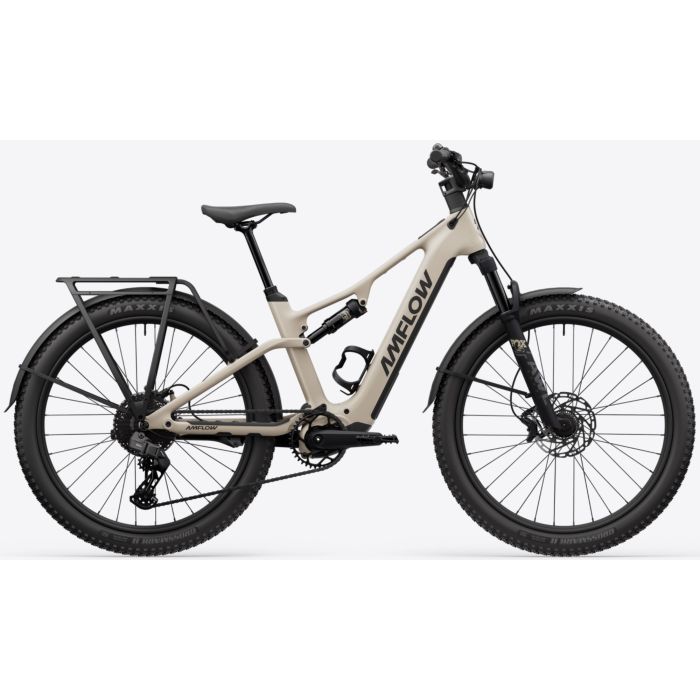

Amflow TL Carbon Full Suspension e-Bike - 2027
- Avinox M2 drive unit
- Removable 800Wh battery
- Lightweight full-carbon frame
Finance Available*.
Learn more
The Amflow TL Carbon Full Suspension e-Bike - 2027 is a light and versatile e-bike for trails, daily travel and loaded tours. Its full-carbon frame, Avinox M2 motor and removable 800 Wh battery combine strong support with easy handling. SmoothShift electronic shifting changes gear without the need to pedal, while the full suspension helps maintain control on rough ground.
Key Features and Benefits:
- Avinox SmoothShift electronic shifting: The system detects each shift command and uses the motor to turn the cassette, so it can change gear without pedal input. Motor torque drops during each shift to reduce shock through the chain and provide smooth changes under load.
- Avinox M2 drive unit: The mid-drive motor supplies up to 125Nm of torque and 1100W of peak power. This gives firm support on steep climbs and when carrying luggage, while its compact position keeps weight centred for stable handling.
- Removable 800Wh battery: The high-capacity battery supports long rides and can be removed with one hand for charging, transport or replacement. A removable design also makes it easier to store the battery indoors when the bike is not in use.
- Modular battery system: The standard battery can be paired with an optional 480 Wh secondary battery for up to 1280 Wh of total capacity. This gives you more scope for long tours without relying on frequent charging stops.
- Lightweight full-carbon frame: The 2.9 kg carbon frame helps keep the complete bike weight to around 22.6 kg. Lower weight makes the bike easier to steer on trails and simpler to handle when parking, loading or moving it by hand.
- FOX full suspension system: The bike uses 120 mm of front travel and 105 mm of rear travel to absorb roots, rough tracks and damaged road surfaces. This helps the tyres stay in contact with the ground and keeps luggage more stable over uneven terrain.
- High load capacity and integrated racks: The bike supports a total system weight of up to 200 kg, including the rider, bike and luggage. Its rear rack can carry up to 27 kg, while an optional front rack can hold up to 20 kg for practical daily or touring use.
- Integrated smart controls: The Avinox system supports offline navigation, Apple Find My, heart-rate-based assistance and compatible DJI Osmo cameras. These tools place route data, bike tracking and ride controls within the display and Avinox Ride app.
The TL Carbon provides one bike for off-road routes, longer trips and routine transport. Its suspension and centred motor weight support controlled handling, while the racks and high load rating make it suitable for carrying kit. The removable battery and electronic gears also reduce the effort needed to manage long or demanding rides.
Choose the Amflow TL Carbon Full Suspension e-Bike - 2027 for strong motor support, practical carrying capacity and adaptable performance across a wide range of routes.
Size Guide:
Size - Height
- S/M - 155-175cm / 5'1 - 5'8"
- L/XL - 175-190cm / 5'8 - 6'3"
| Frame | Amflow TL Carbon Frame |
| Silica Beige | |
| Full Suspension, Removable Battery, Compatible With 27.5″ and 29″ Front and Rear Wheels | |
| Compatible With Front and Rear Mudguards | |
| Compatible With Rear Rack and Front Rack | |
| Compatible With Bike Trailers (Requires Trailer Thru-Axle) | |
| Drive System | Avinox M2 Drive Unit: Nominal 110N·m, Peak 125N·m |
| Screen: Avinox DPC100, 2-inch OLED Control Display | |
| Battery: Avinox RS800 Battery (Removable) | |
| Wireless Controllers: Avinox Wireless Controller × 2 (One on each side of the handlebar) | |
| Charger: Avinox 4A Charger, 168W Output | |
| Rear Shock | FOX FLOAT Rhythm, LSR adjustment, Amflow TL tuned, 190×45mm |
| Fork | FOX AWL Sport, 120mm, RAIL 2.0 damper, LSR adjustment, 15×110mm Kabolt, 44mm offset |
| Drivetrain | Rear Derailleur: TRP E.A.S.I. RD-T7010E-L, 10/11-Speed, Electronic Rear Derailleur |
| Cassette: CS-M5243, 10-Speed, 11-43T | |
| Chainring: Avinox Direct Mount Chainring (38T) | |
| Chain: Avinox eGlide T Chain (10S/11S, 118 Links) | |
| Crankset: Avinox SL Crankset (S/M: 155mm; L/XL: 160mm) | |
| Brakes | Tektro TKD173 Hydraulic Disc Brakes, 4-Piston Caliper, Customized for Amflow |
| Tektro TR180-61E, Ø180mm, 2.3mm thickness, with integrated tonewheel for Avinox | |
| Front Wheel: | Amflow HTA-25 Front Wheel (27.5″) |
| Tires: Maxxis 27.5×2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI | |
| Rim: Alloy, 27.5″, 25mm Inner Width, 32H | |
| Hub: Alloy, 15×110mm Thru-Axle, 32H, 6-bolt | |
| Rear Wheel: | Amflow HTA-25 Rear Wheel (27.5″) |
| Tires: Maxxis 27.5×2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI | |
| Rim: Alloy, 27.5″, 25mm Inner Width, 32H | |
| Hub: Alloy, 12×148mm Thru-Axle, 32H, 6-bolt, 6 Pawls, HG Freehub | |
| Handlebar | Amflow Touring Handlebar |
| S/M Size Frame: 720mm Width, 35mm Diameter, 93mm Rise | |
| L/XL Size Frame: 740mm Width, 35mm Diameter, 93mm Rise | |
| Grips | Amflow Enduro Grip 2 |
| Stem | Amflow Touring Bike Split Stem (Clamping Diameter: 35mm, Length: 35mm, Angle: 0°) |
| Saddle | Amflow Touring Saddle |
| Dropper Post | Amflow TA Dropper Post, 31.6mm (Adjustable Travel: 0/-10/-20mm) |
| S/M Size Frame: 150mm | |
| L/XL Size Frame: 170mm | |
| Accessories | Avinox Front Light |
| Amflow Touring Rear Rack, Compatible With MIK HD Standard | |
| Amflow Elite MTB Pedals | |
| Amflow Bottle Cage | |
| Front Mudguard, Rear Mudguard | |
| Amflow Touring Kickstand (348mm) | |
| Amflow Touring Bike Split Stem (Clamping Diameter: 35mm, Length: 35mm, Angle: 0°) | |
| Sate-lite M8 Rear Light With Integrated Reflector | |
| Dropper Post Travel Reducing Spacer | |
| Two Keys for Removable Battery | |
| Torque Wrench |
| Size | L/XL, S/M |
| Brand | Amflow |
| MPN(s) | CB.6979871810442, CB.6979871810459 |
