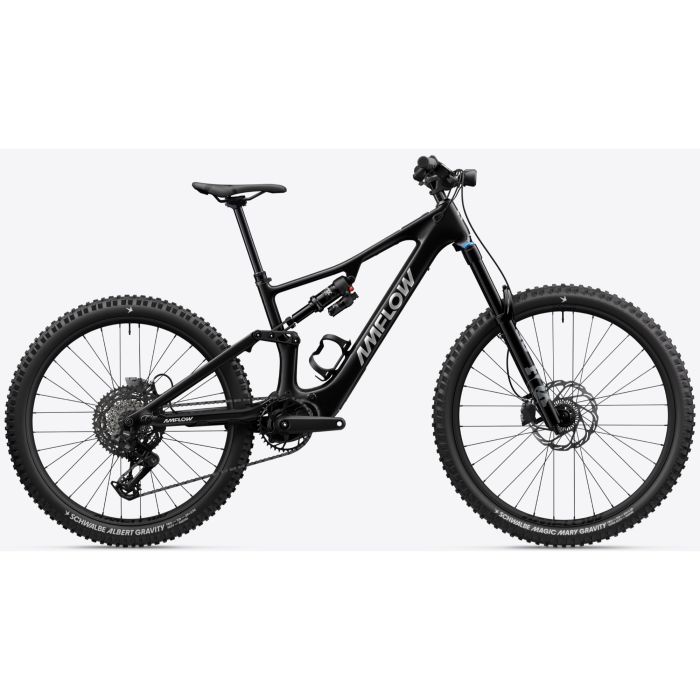

Amflow PX Carbon Full Suspension e-Bike - 2027

The Amflow PX Carbon Full Suspension e-Bike - 2027 is a powerful and highly adjustable enduro e-bike. Its carbon frame offers up to 40 geometry settings, so you can tune the bike for different trails and riding styles. The Avinox M2S drive unit delivers up to 150 Nm of torque, while the 700 Wh battery supports long days on the bike. FOX suspension, Magura brakes and SRAM Eagle Transmission parts provide firm control on steep and rough terrain.

Key Features and Benefits:

• 40 Adjustable Geometry Settings: Five head angle settings, two bottom bracket heights and four chainstay lengths provide up to 40 set-up options. You can tune the bike for stable descents, sharp handling or firm climbing control. The frame also supports a 27.5-inch or 29-inch rear wheel, which adds more choice when setting up the bike.
• Avinox M2S Drive Unit: The compact motor produces 130 Nm of standard torque and up to 150 Nm at peak output. Several sensors track your pedal input and adjust the support in real time. This gives you smooth power on technical climbs and strong support when the trail gets steep.
• 700Wh Integrated Battery: The high-capacity battery stores enough power for long trail rides with less need to stop and recharge. Its position inside the down tube keeps the frame shape clean and places the weight low in the bike. This helps the bike feel balanced when climbing, cornering and descending.
• 508W Fast Charger: The supplied 12A charger delivers up to 508 W for much faster charging than a standard low-power charger. It can charge the battery from 0% to 80% around three times faster than the 168 W Avinox charger. This reduces the break needed before the next ride.
• FOX Performance Suspension: A FOX 36 Performance fork provides 160 mm of travel, a GRIP damper and rebound adjustment. The FOX Float X Performance rear shock has a custom tune, a two-position lever and low-speed rebound control. This set-up absorbs hard impacts while giving the bike support through corners and compressions.
• SRAM Eagle Transmission Drivetrain: The SRAM S1000 Eagle Transmission rear derailleur works with an AXS Pod controller and a wide-range 10-52T cassette. The full-mount derailleur design provides a strong and precise connection to the frame. Wireless shifting gives you clean gear changes without a cable that can stretch or wear.
• Magura Gustav Pro Brakes: Four-piston hydraulic callipers work with thick 203 mm rotors at the front and rear. The large rotors manage heat during long descents and provide firm braking with less force at the lever. This helps you control speed on steep ground and stop with confidence in poor conditions.
• Trail-Focused Mullet Wheels: A 29-inch front wheel rolls over roots and rocks, while the 27.5-inch rear wheel helps the bike turn and change direction. The tubeless-ready alloy rims have a 30 mm internal width for firm tyre support. Schwalbe radial tyres add grip and control on loose, steep and uneven trails.

The PX Carbon is built for riders who want strong motor support without giving up suspension control or frame adjustment. Its wide geometry range lets you refine the handling as your terrain or preferences change. The full suspension system, mixed wheel sizes and powerful brakes help keep the bike composed when the trail becomes steep or rough.

Choose the Amflow PX Carbon for adaptable geometry, high motor torque and proven trail parts in one carbon e-bike. It offers the range, control and tuning options needed for demanding rides across varied terrain.

Size Guide:

Size - Height

• M - 162-178 / 5'4 - 5'10"
• L - 170-185 / 5'7 - 6'1"
• XL - 175-191 / 5'9 - 6'3"
• XXL - 185-201 / 6'1 - 6'7"
